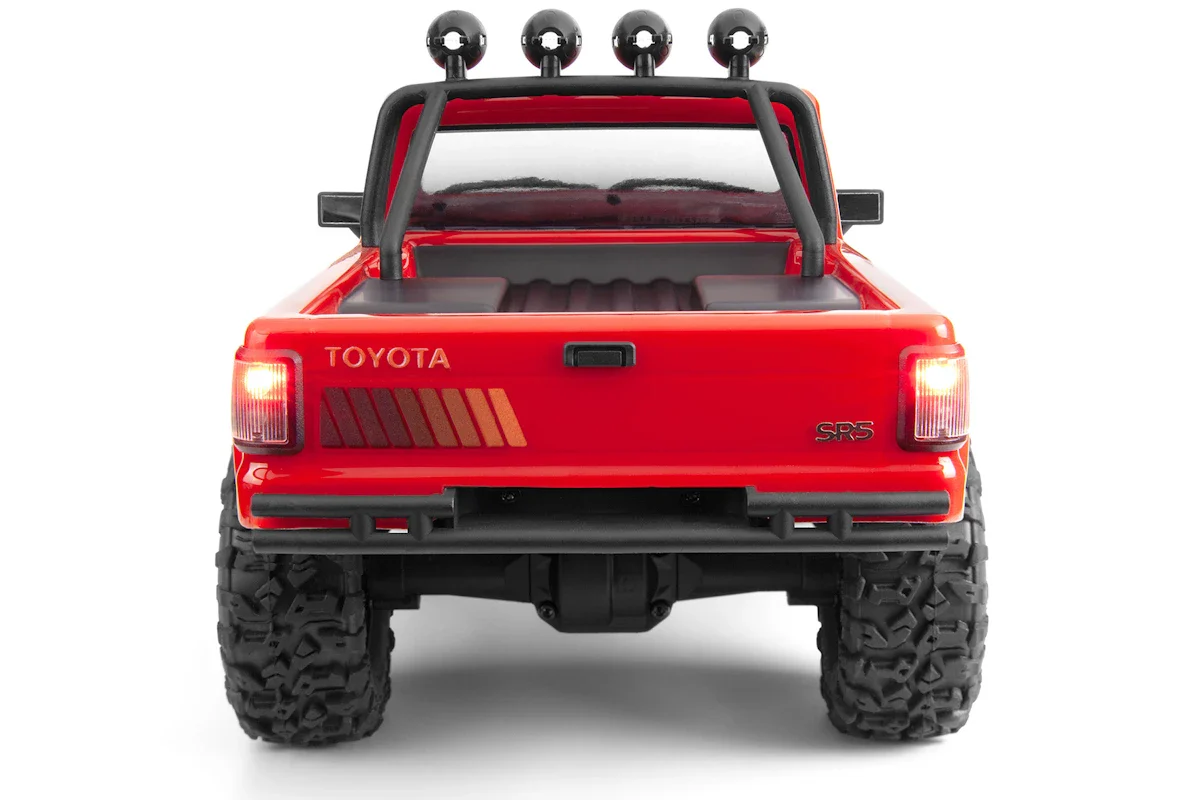

HPI Venture18 1985 Toyota Hilux SR5 4WD 1:18 RTR RC Truck - Red

The HPI Racing Venture18 is a compact 1/18 scale off-road truck built with the same engineering DNA as its full-size predecessor. Featuring a tough formed steel C-channel chassis, realistic multi-link suspension, counter-rotating driveshafts and a new all-metal 2-speed transmission, it delivers impressive capability on any terrain.

The officially licensed 1985 Toyota Hilux SR5 body returns to the HPI lineup, complete with a secure clipless system, clear windows, functional mirrors, realistic tube bumpers, rollbars, wipers, door handles and pre-installed LED lights. Available in Gloss Black or Gloss Red with stripe decals.

Fully Ready-to-Run, the Venture18 includes a 600mAh 7.4V LiPo battery and USB charger, so you can hit the trail straight out of the box.

Key Features

• Factory-assembled 1/18 scale full-time 4WD RTR truck
• Officially licensed 1985 Toyota Hilux SR5 polycarbonate body
• Clipless body mounting with rear hinge
• Steel C-channel chassis rails for strength
• Servo-operated all-metal 2-speed transmission (Low/High)
• Locked differentials for maximum off-road traction
• Front & rear 4-link suspension
• Oil-filled aluminum-capped coilover shocks
• Universal telescopic counter-rotating driveshafts
• 45° steering angle with front universal driveshafts
• Axle-mounted high-torque steering servo
• Rockthorn 1.2" S-Compound off-road tires
• Chrome CS-10 beadlock “Steely” wheels with center caps
• Working LED headlights, indicators, brake lights & hazard modes
• Light modes selectable from transmitter
• Adjustable rock sliders for body protection & obstacle clearance
• 7mm hex hubs (compatible with aftermarket crawler wheels)
• HPI Micro 55T 180 motor
• SRL-706 3-in-1 ESC/Receiver/Light Controller (10A)
• SD-01WR Micro Servo (water-resistant)
• TF-706 2.4GHz 6-channel radio with thumbstick option
• Includes 600mAh 7.4V LiPo battery & USB balance charger

Lighting System

• Fully functional LED system with 5 selectable modes
• Day, Dusk, Night and more – controlled via transmitter
• Automatic brake lights
• Turn signals & hazard mode
• Optional additional rollbar LEDs (plug-and-play)

Performance & Driveline

• Low Gear ratio: 81.44:1 for crawling
• High Gear ratio: 20.36:1 for trail speed
• Axle ratio: 2.54:1
• Straight axles front & rear for maximum traction
• Low center of gravity transmission layout
• Minimal differential pumpkin for improved ground clearance

Suspension & Handling

• True-to-scale suspension behaviour
• 4-link design front and rear
• Aluminum-capped threaded shocks for on-the-fly ride height tuning
• 25.5° axle articulation

Clearance & Angles

• Break-over angle: 55°
• Approach angle: 50.5°
• Departure angle: 44.8°
• Max climb angle: 57°
• Max tilt angle: 43°
• Ground clearance: 28.7mm
• Axle clearance: 17mm

Dimensions

• Length: 272mm
• Width: 127mm
• Height: 125.6mm (with rollbar lights)
• Wheelbase: 155.4mm

Weight

• Running weight: 0.50kg
• Weight without battery: 0.47kg

Included in the Box

• HPI Venture18 RTR truck
• TF-706 2.4GHz 6-channel radio system
• 600mAh 7.4V LiPo battery
• USB balance charger
• Instruction manual
